Replacing a trane thermostat with a nest learning

[rguthrie01]

I wired the nest learning thermostat the same way my trane thermostat was wired. Everything i turn it on to cool, the unit blows heat.

[CoolingWizard]

@rguthrie01 , please post the picture you took of the old thermostat wiring before you disconnected it. Secondly, post a picture of the Nest thermostat backplate so we can sef the wires attached.

AC Cooling Wizard

[rguthrie01]

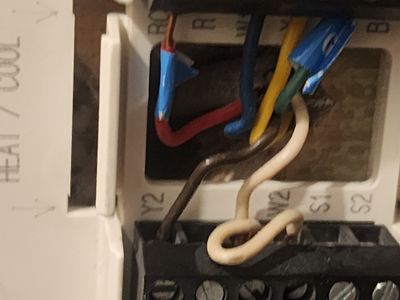

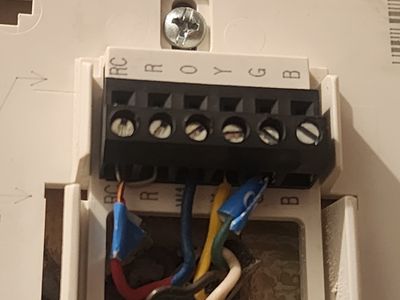

Here are the pictures of the original thermostat before disconnecting any wires

 

 

[SoriaD_]

Hello @rguthrie01

Thanks for reaching out to our Nest Community. We apologize for all the inconvenience with this new installation. Don't worry; I'm happy to assist you with this situation.

I would really appreciate it if you could share with us more details about the HVAC system. This is to determine the correct wiring configuration on your thermostat.

Feel free to keep us posting; I'm happy to find a solution for your concern.

Kind regards,

Douglas.
