Trane XR80 compatible

briancole1812
Community Member

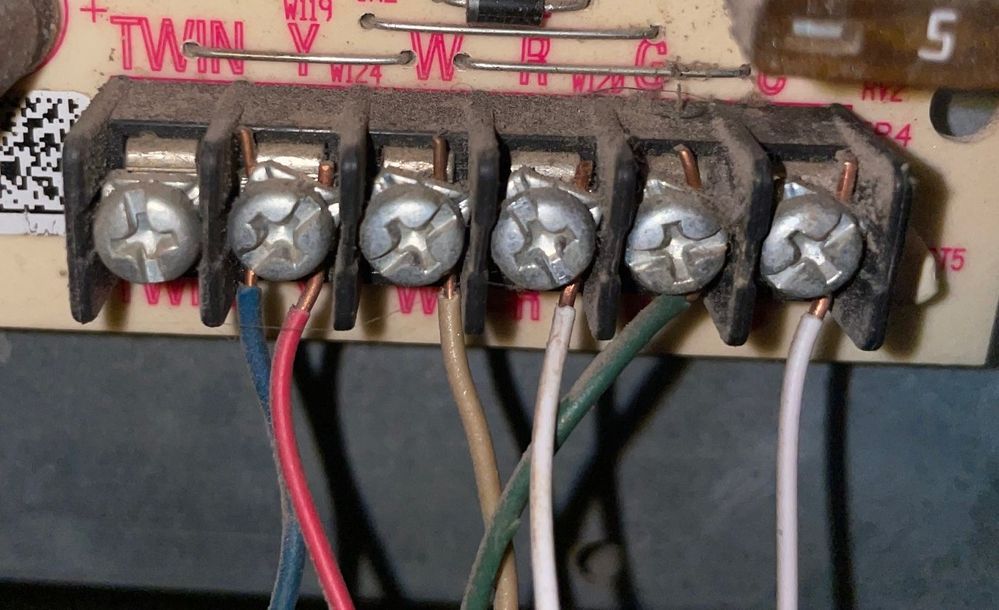

I'm trying to see if my Trane XR80 (model number TUD080C936K0) is compatible with Nest thermostats.  At first glance the wire colors behind the thermostat and on the actual unit don't appear to be color coated in the traditional manor.  Please help.  I've attached photosthermostat wiring.jpgunit wiring from front.jpgunit wiring from side.jpgunit wiring from above.jpgTrane XR80.jpgmodel number.jpg

1 Recommended Answer

CoolingWizard
Platinum Product Expert
Platinum Product Expert

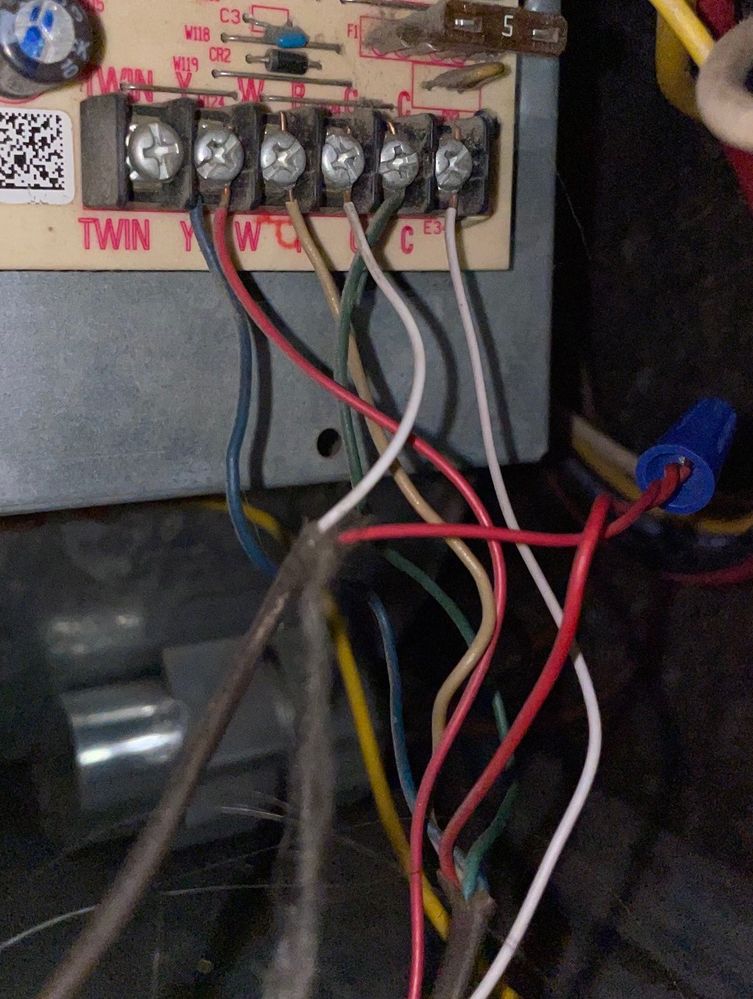

The problem is you have three cables at the indoor XR80. Normally, the R terminal of the air handler is connected to the thermostat.  Your is connected to a white wire, going somewhere, coming back on the red wire, and cross connected to the red wire going to the thermostat.  There is another 2-conductor cable going outside. It has a red wire on Y, and a white wire on C. You need to see if you can follow the one with white on Y and red wire cross connected, and see where that cable goes. What ever it goes to, it is withholding the R power.



AC Cooling Wizard

NestPro, Google Pro, Mechanical Engineer and HVAC service company owner. If my answer solved your problem, click Recommend this Answer below, and If it helped you, please give a Kudo.

View Recommended Answer in original post

5 REPLIES 5

CoolingWizard
Platinum Product Expert
Platinum Product Expert

@briancole1812 ,

you did a really good job providing pictures that help make us understand how your system is wired. From the standpoint of your old thermostat you have a conventional air-conditioning system. You can use any of the Nest Thermostats models. So if you are not interested in the advanced features if the Nest Learning Thermostat, the less expensive Nest Thermostat will work for you.  Do you have a dehumidifier attached to your system?

AC Cooling Wizard.

NestPro, Google Pro, Mechanical Engineer and HVAC service company owner. If my answer solved your problem, click Recommend this Answer below, and If it helped you, please give a Kudo.

briancole1812
Community Member

When I tried to install the thermostat, I wired it to reflect how the old thermostat was wired and it didn’t work.   What is the correct way to wire this?

CoolingWizard
Platinum Product Expert
Platinum Product Expert

The problem is you have three cables at the indoor XR80. Normally, the R terminal of the air handler is connected to the thermostat.  Your is connected to a white wire, going somewhere, coming back on the red wire, and cross connected to the red wire going to the thermostat.  There is another 2-conductor cable going outside. It has a red wire on Y, and a white wire on C. You need to see if you can follow the one with white on Y and red wire cross connected, and see where that cable goes. What ever it goes to, it is withholding the R power.



AC Cooling Wizard

NestPro, Google Pro, Mechanical Engineer and HVAC service company owner. If my answer solved your problem, click Recommend this Answer below, and If it helped you, please give a Kudo.

zoeuvre
Community Specialist
Community Specialist

Hi briancole1812,



Thanks for posting here in the Community forum and for showing interest in our Nest Thermostats.I want to check if you managed to see the response above. Please let us know if you still have questions or concerns, as we'll be willing to assist you further.


I appreciate your help, @CoolingWizard
